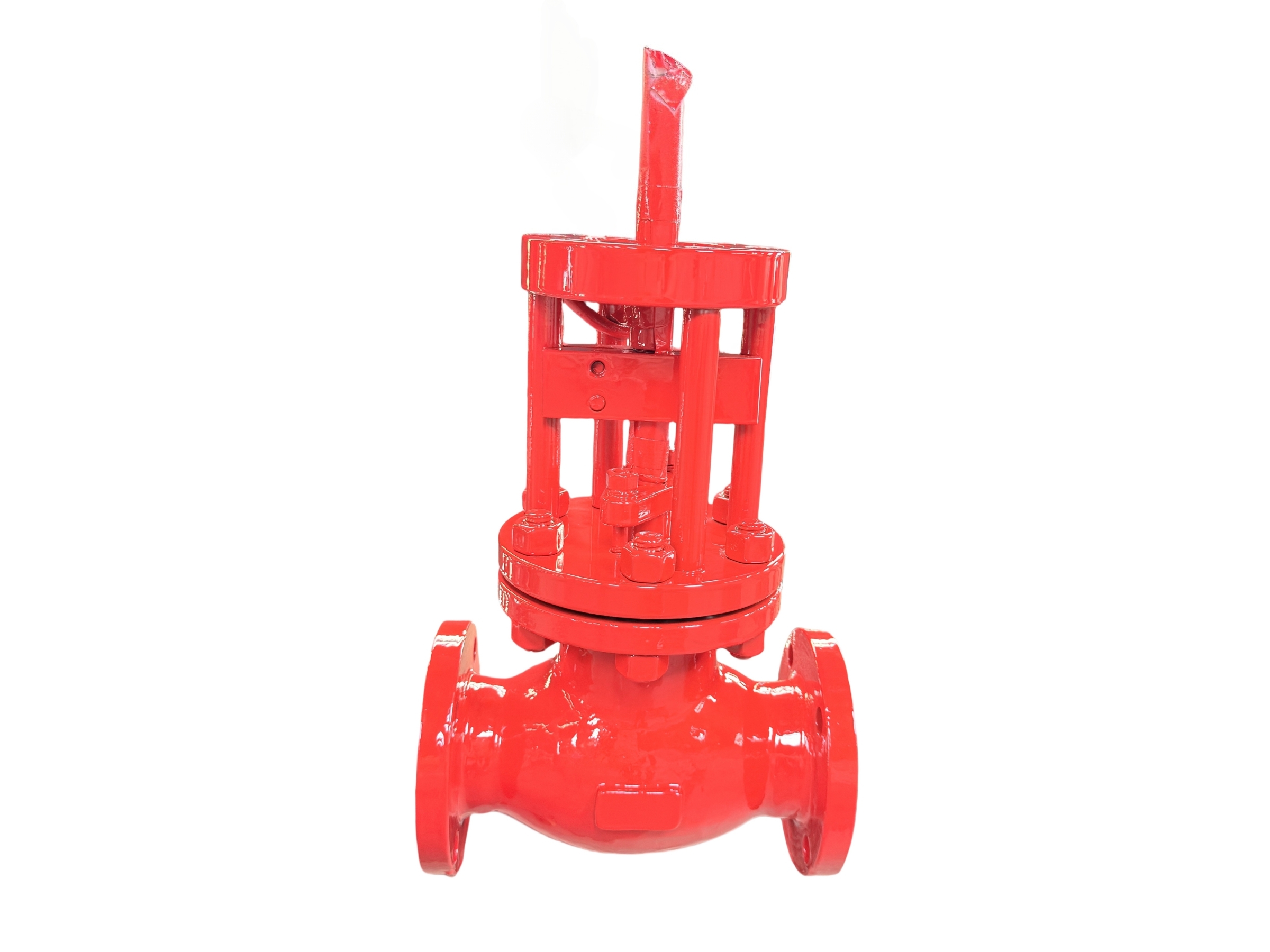

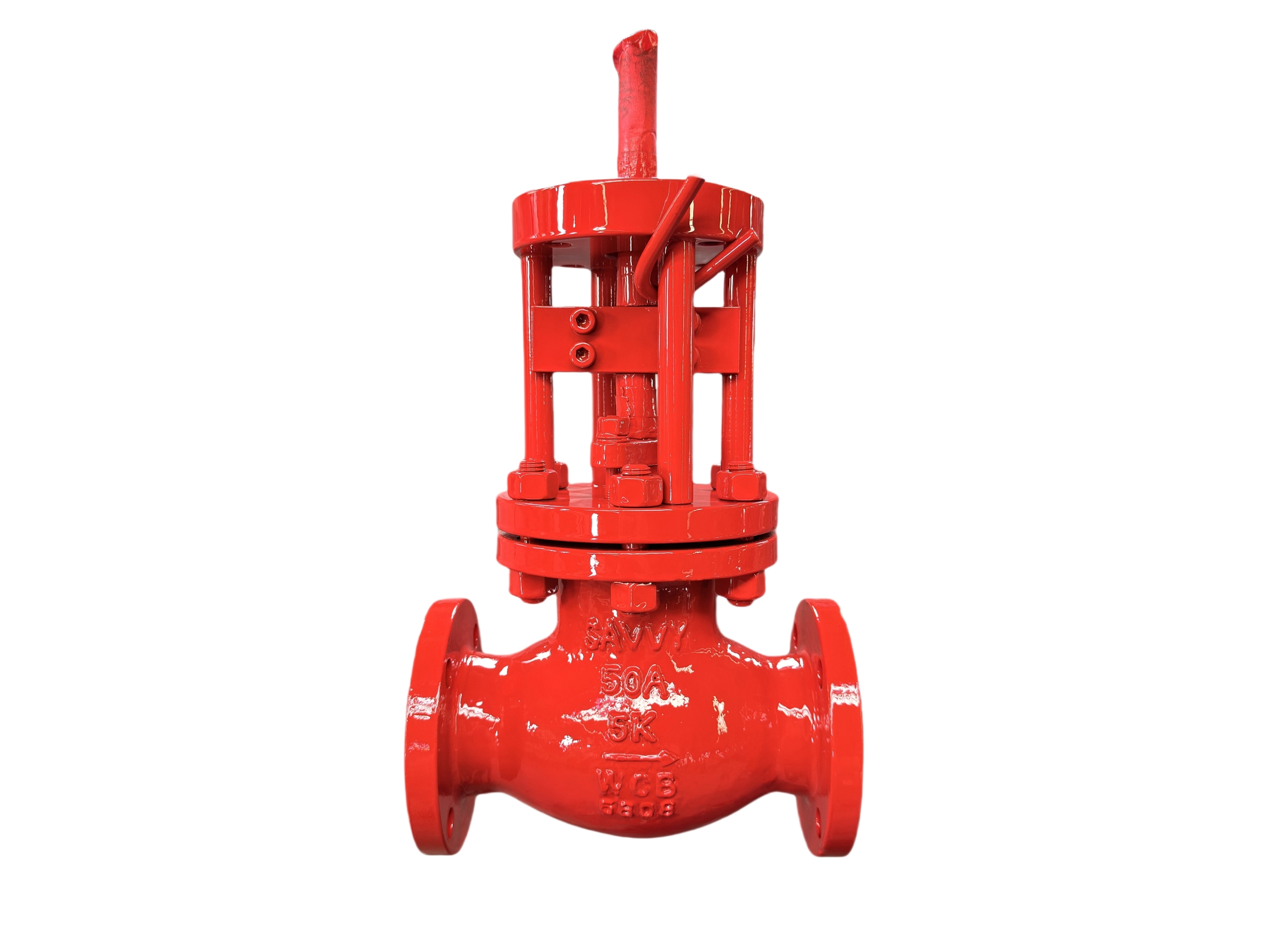

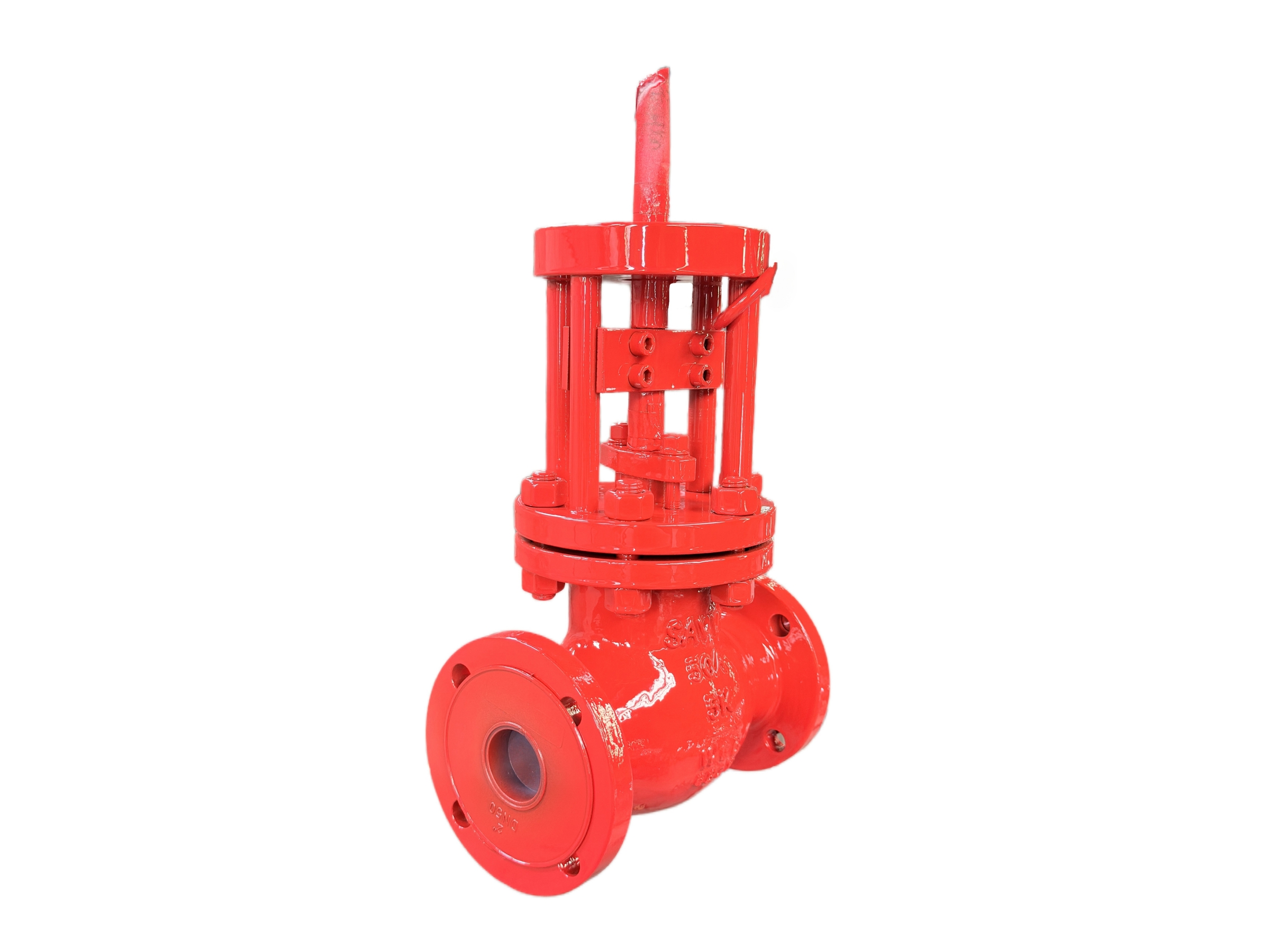

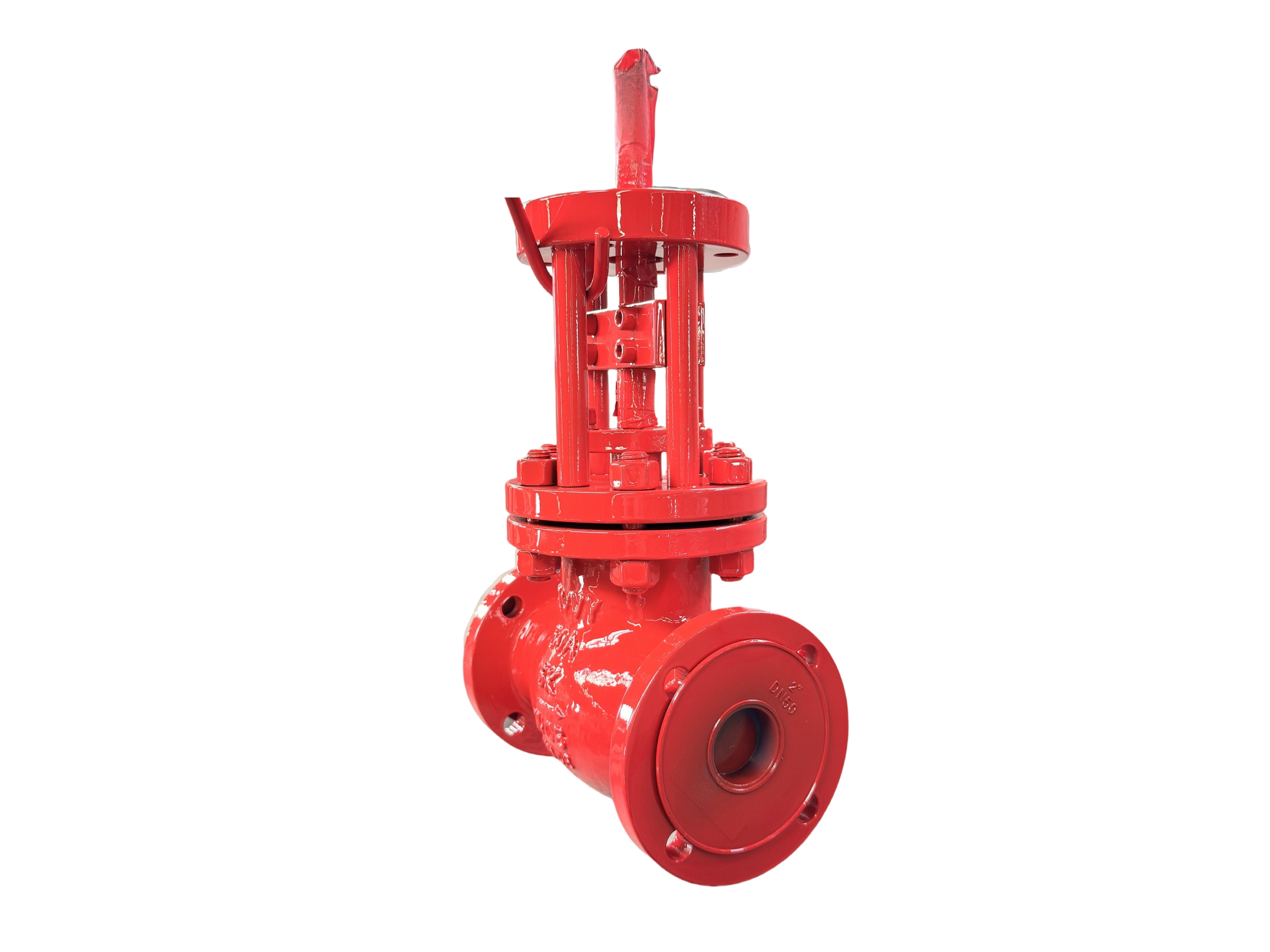

SDNR Globe Valves Ready for Actuator — 50A JIS5K RF

Description

Technical Data Sheet (Revised)

SDNR Globe Valve (Screw Down Non-Return) – WCB Body, Bronze Trims

Product Name: SDNR Screw Down Non-Return Globe Valve
Model: SDNR-GV-50A-5K-RF-WCB-ACT
Nominal Size: 50A (DN50)
Pressure Rating: JIS 5K
Connection Type: Flanged RF (Raised Face)
Operation: Manual (handwheel as standard), Actuator Ready

1. Technical Specifications

Item Specification
Nominal Size 50A (DN50)
Nominal Pressure JIS 5K (0.5 MPa)
Connection Standard JIS B2220 5K RF
Design Standard JIS B8210 / Manufacturer’s Standard (adapted for carbon steel body)
Configuration Straight pattern, rising disc, bolted bonnet
Valve Feature SDNR: Functions as a screw-down check valve. With handwheel fully raised, the disc can be lifted by forward flow (check function); reverse flow forces the disc to reseat, preventing backflow. Tightening the handwheel drives the disc mechanically onto the seat, providing positive shut-off as a globe valve.
Body Material ASTM A216 WCB (Carbon Steel)
Bonnet Material ASTM A216 WCB
Disc Material Bronze (ASTM B62 / CAC406 or equivalent)
Seat Sealing Face Integral bronze seat or bronze overlay on seat ring
Stem Material SUS403 (Stainless Steel)
Stem Thread Trapezoidal thread Tr18×4 (rising stem)
Packing PTFE-impregnated synthetic fiber / Flexible graphite
Gasket (Bonnet) Non-asbestos fiber / PTFE
Applicable Media Fresh water, fuel oil, lubricating oil, steam, inert gas, and other non-corrosive fluids (not recommended for continuous seawater service due to carbon steel shell)
Applicable Temperature -29 °C to 200 °C (limited by packing and bronze trim)
Face-to-Face Dimension (L) 190 mm (in accordance with JIS B2002)
Flange Outer Diameter (D) 140 mm
Bolt Circle Diameter (C) 120 mm
Bolt Holes 4 × Φ19 mm
Center to Top of Handwheel (Manual) Approx. 350 mm
Handwheel Diameter Φ160 mm
Approximate Weight Approx. 26 kg (manual configuration)
2. Actuator Interface Data (Actuator Ready)

Valve comes with an ISO standard mounting pad and prepared stem end for direct actuator installation.

Item Specification
Mounting Flange Standard ISO 5211
Mounting Flange Size F10 (F07 available on request)
Flange Outer Diameter Φ125 mm
Mounting Hole Center Dia. Φ102 mm
Bolt Holes / Thread 4 × M10
Stem Drive Preparation Stem top machined with keyway (5 mm key width); can be adapted to square or fitted with a coupling nut
Stem Lift Approx. 14 mm (full stroke)
Recommended Actuator Type Multi-turn electric actuator or linear pneumatic actuator (with bracket)
3. Testing and Inspection

Test Item Test Medium Test Pressure Standard
Shell Strength Test Water 0.75 MPa (1.5×PN) JIS B2003
Seat Leakage Test Water 0.5 MPa (1.1×PN) JIS B2003
Air Seat Test (Optional) Air 0.5 MPa By agreement
Visual / Dimensional – – MSS SP-55, JIS B2220
4. Main Parts Material List

Part Name Material
Body ASTM A216 WCB
Bonnet ASTM A216 WCB
Disc Bronze (ASTM B62 / CAC406)
Seat Integral bronze / Bronze overlay
Stem SUS403 Stainless Steel
Stem Nut C3771 Forged Brass / Bronze
Handwheel Ductile Iron FCD450 / Fabricated Steel
Gland WCB
Gland Packing Bushing C3771 Brass
Body Stud / Nut ASTM A193 B7 / A194 2H (or SUS304)
Bonnet Gasket Flexible graphite with SS insert
5. Ordering & Application Notes

WCB Body Advantages: Higher strength and wider temperature range compared to cast iron; suitable for moderate pressure services and higher thermal cycling.
Bronze Trims: Excellent corrosion resistance and anti-galling properties; ideal for steam, water, and oil. Not affected by dezincification.
Seawater Caution: The WCB carbon steel body requires external painting/coating and is not intended for prolonged immersion in seawater. For seawater applications, a bronze or stainless steel body is recommended.
Standard manual handwheel is supplied. For actuated packages, please specify actuator make, power source, and control requirements.
Tighter shut-off classes (e.g., Class VI) available on request; otherwise tested to JIS 5K standards.
