B148 C95800 Angle Globe Valves

Description

Product Technical Data Sheet

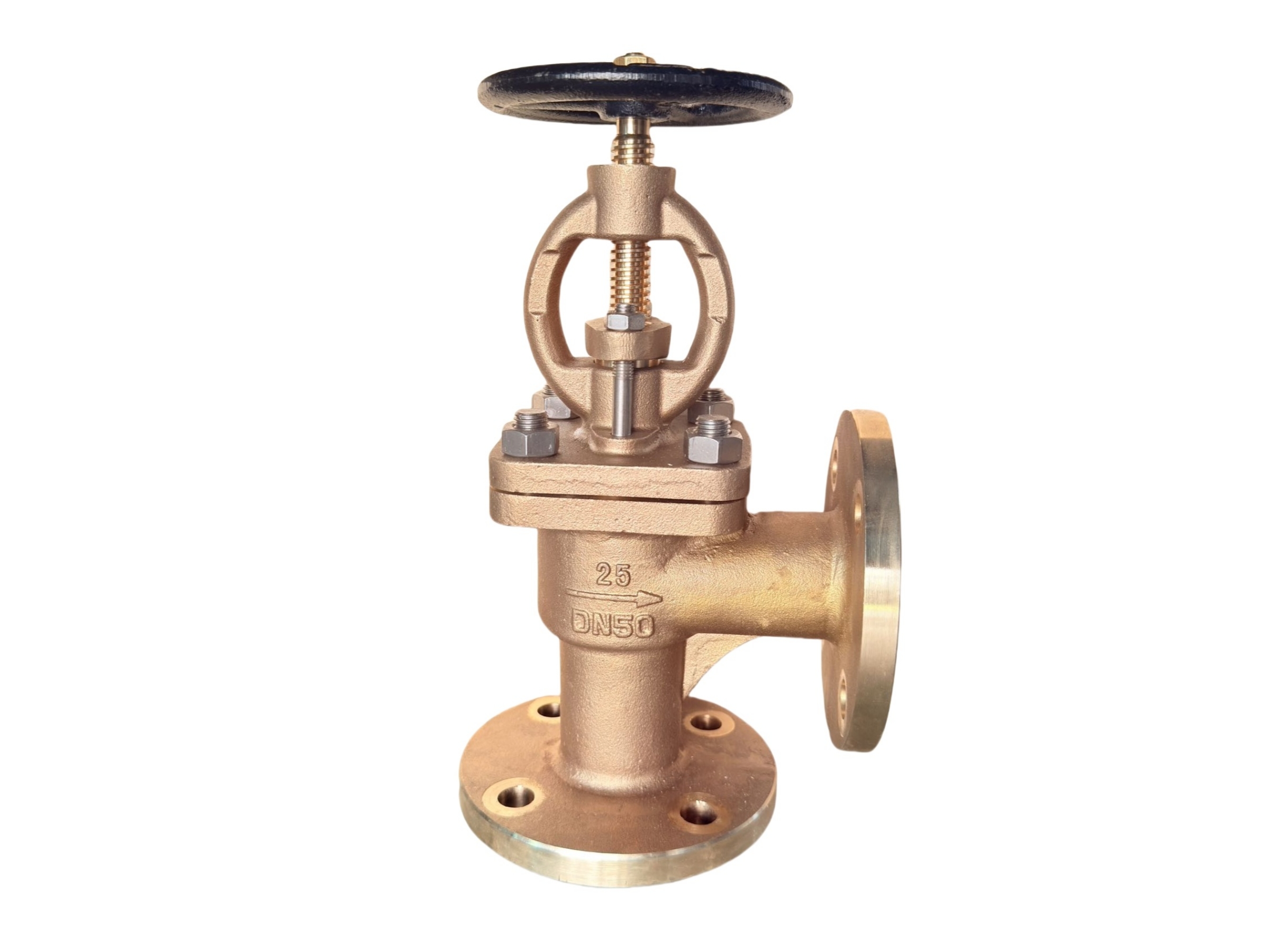

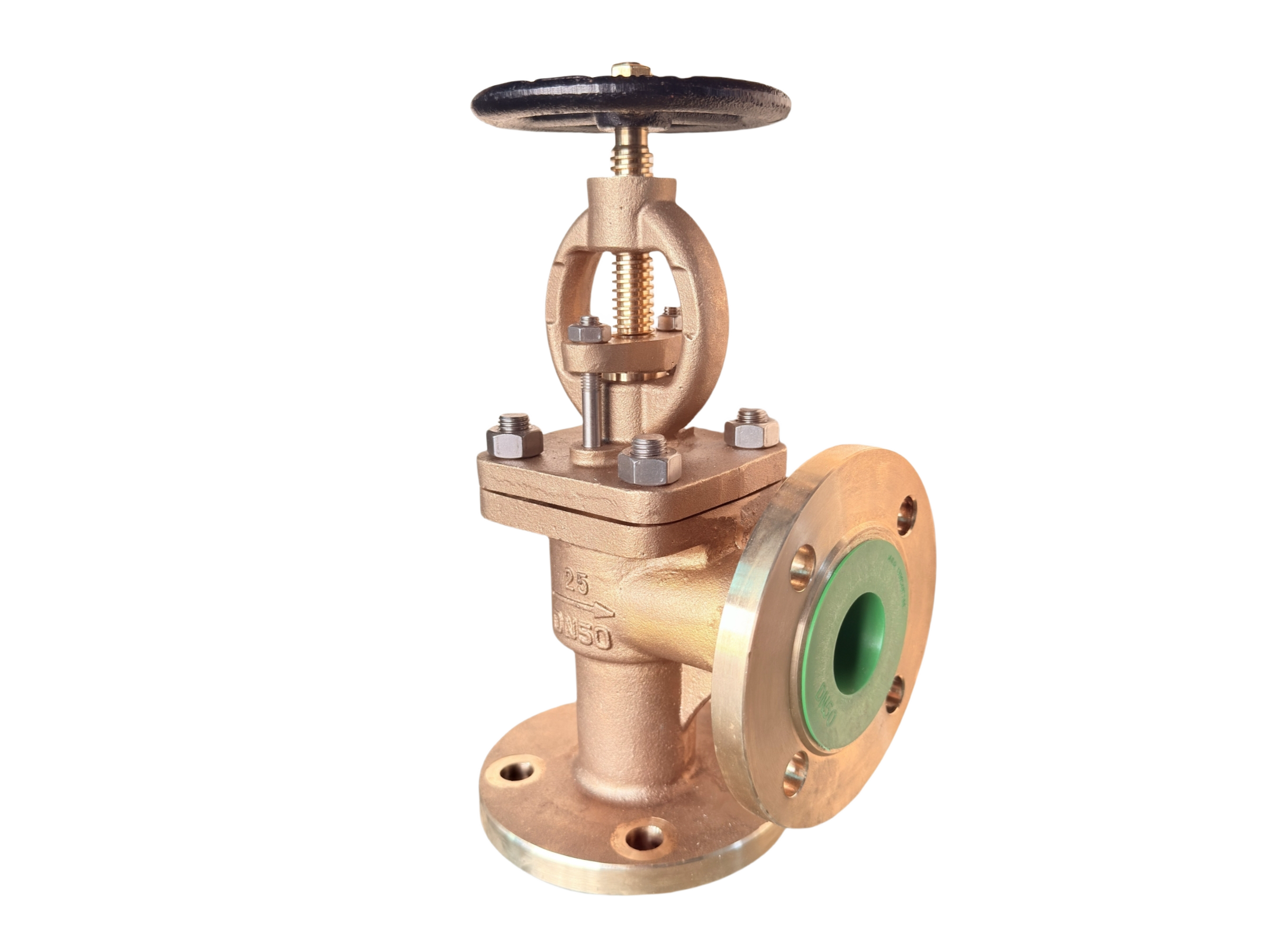

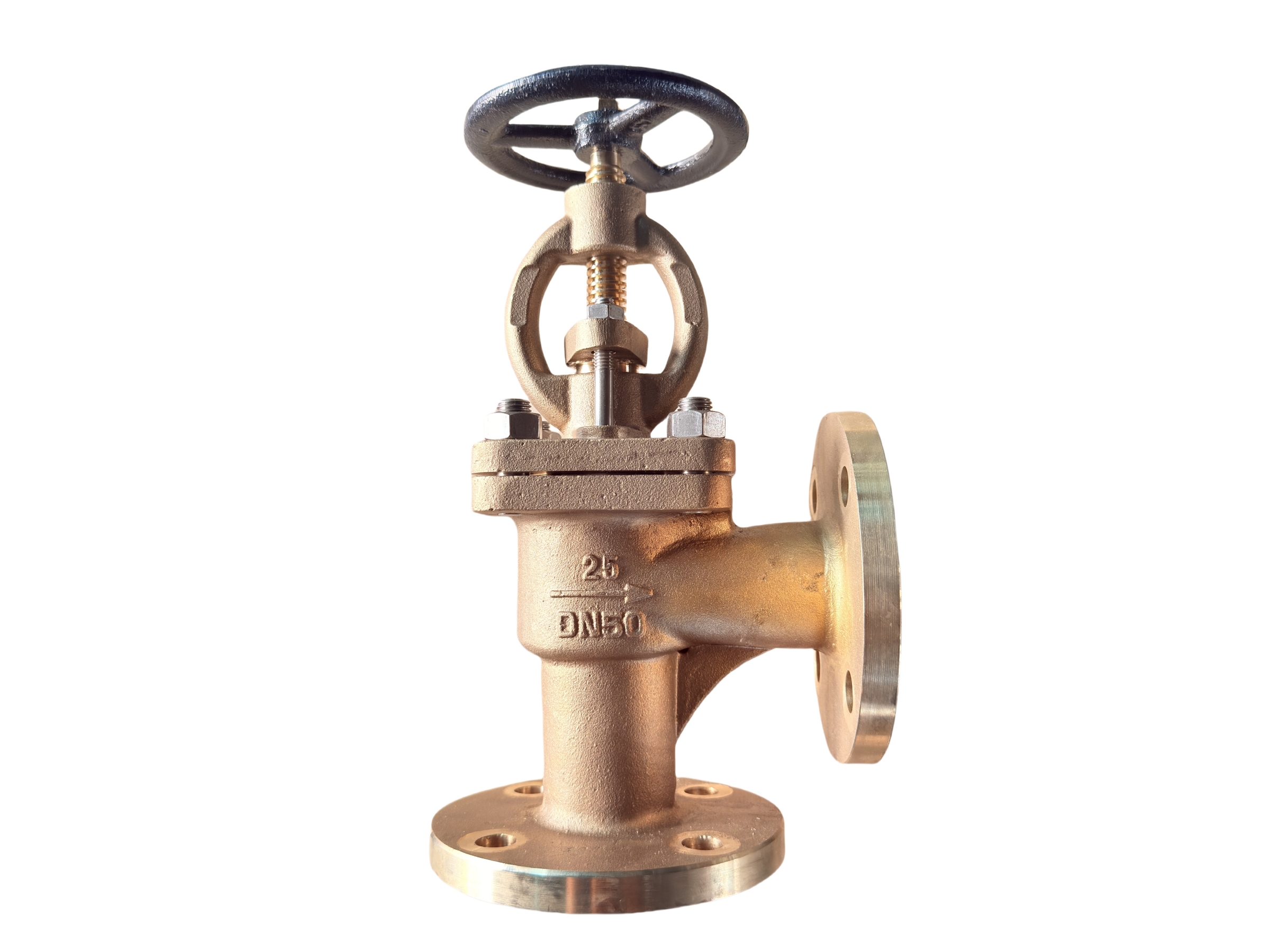

ASTM B148 C95800 Nickel Aluminum Bronze Angle Globe Valve

1. Product Overview

This product is an Angle Pattern Globe Valve constructed from ASTM B148 C95800 Nickel Aluminum Bronze casting alloy. C95800 is a high-strength copper casting alloy containing aluminum (8.5–9.5%), nickel (4.0–5.0%), and iron (3.5–4.5%), offering exceptional seawater corrosion resistance, cavitation resistance, and erosion-corrosion resistance.

The angle globe valve is a variation of the straight globe valve, featuring a 90-degree flow path that directs the flow at a right angle. This design provides three essential functions in a single component: shut-off the line, regulate flow, and change piping direction. Compared to a standard globe valve installed together with an external 90° elbow, the angle pattern integrates the turn inside the valve body, simplifying piping layout, reducing external joints, and improving suitability for high-pressure and space-constrained applications.

C95800 nickel aluminum bronze is recognized as having outstanding wear resistance—rated as the best of all bronzes—along with excellent corrosion resistance, making it an ideal material for marine hardware, pump and valve components handling seawater, sour mine waters, non-oxidizing acids, and industrial process fluids.

2. Angle Globe Valve Design Description

Angle Pattern (90-Degree Flow Path) : The inlet and outlet ports are oriented at 90° to each other, enabling the valve to simultaneously change fluid direction while providing throttling and isolation functions. This configuration offers:

Reduced Pressure Drop: The angled flow path provides a smoother flow transition, generating less pressure drop compared to straight globe valves with external elbows
Reduced Installed Complexity: Integrates the 90° turn inside the valve body, eliminating the need for separate pipe fittings
Reduced Leakage Risk: Every external joint eliminated reduces potential leak paths, which is critical for steam, hot oil, ammonia, and other demanding services
Space Efficiency: Facilitates compact piping layouts in skids, process modules, and confined installation spaces
Lower Erosion Potential: The 90° flow turn reduces direct impingement on seating surfaces compared to T-pattern globe valves

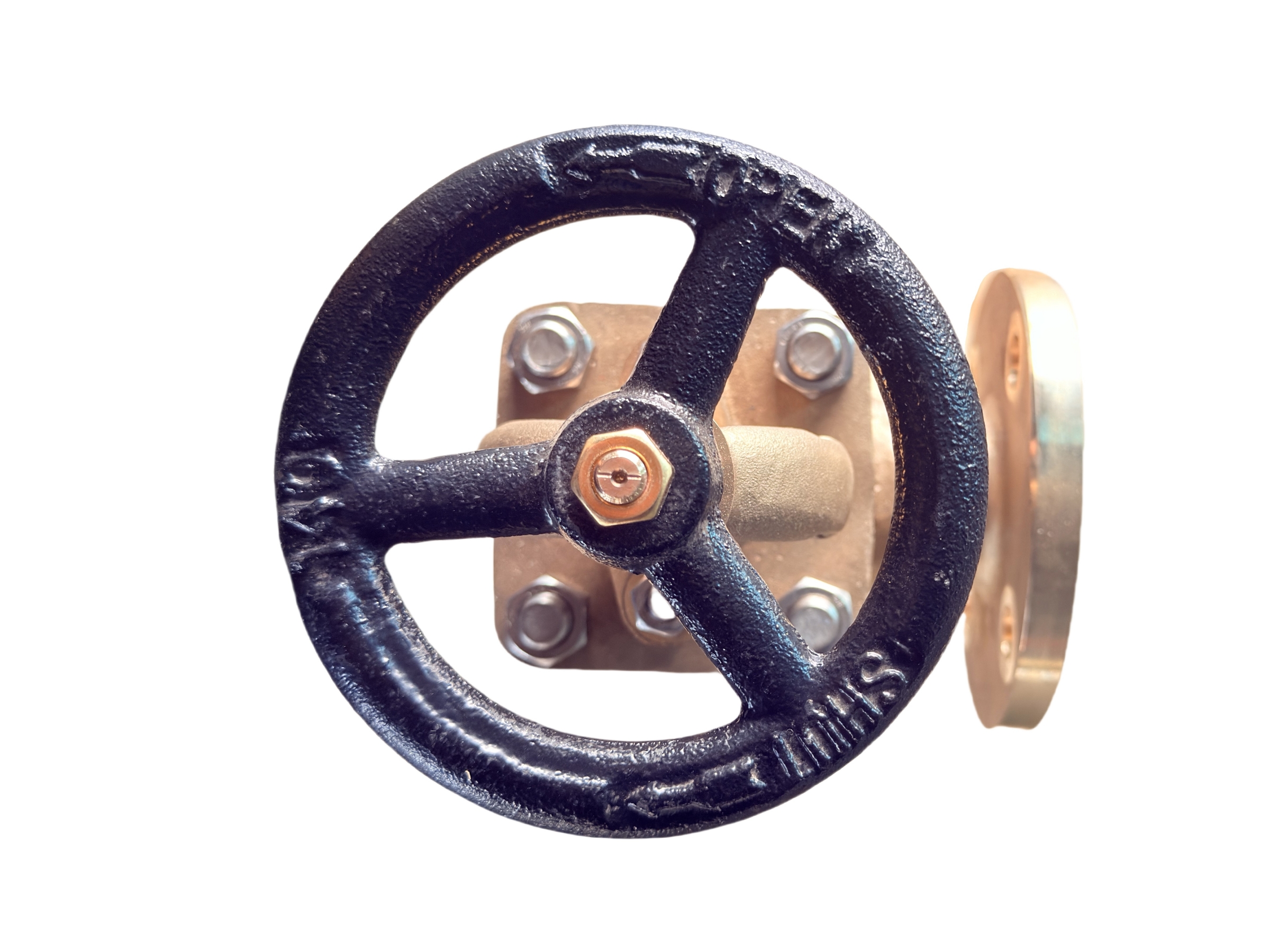

External Screw & Yoke (OS&Y) / Rising Stem Design: The stem threads are located outside the fluid chamber, protecting them from corrosion and providing visual indication of valve position. The stem rises when the valve is opened and lowers when closed.

3. Material Specifications

3.1 C95800 Chemical Composition (ASTM B148)

Element Composition Range (%) Notes
Copper (Cu) 79.0 min Matrix
Aluminum (Al) 8.5 – 9.5 Forms protective Al₂O₃ passive film
Nickel (Ni) 4.0 – 5.0 Enhances corrosion resistance
Iron (Fe) 3.5 – 4.5 Refines grain structure
Manganese (Mn) 0.8 – 1.5 Improves castability
Silicon (Si) ≤ 0.10
Lead (Pb) ≤ 0.03
*Reference standards: ASTM B148, SAE J462, MIL-B-24480*

3.2 C95800 Mechanical Properties

Property Typical Value ASTM Minimum
Tensile Strength 590 – 760 MPa (85–110 ksi) 85 ksi (586 MPa)
Yield Strength (0.5% EUL / 0.2% offset) 240 – 360 MPa (35–52 ksi) 35 ksi (241 MPa)
Elongation (2″ gauge length) 15 – 20% 15%
Hardness (Brinell @ 3000kg) 159 – 190 HB 160 HB
Modulus of Elasticity 114 GPa (16,500 ksi) —
Impact Strength (Izod @ 20°C) 27 J (20 ft-lb) —
Shear Strength 58 ksi (400 MPa) —
Fatigue Strength (10⁸ cycles) 32 ksi (221 MPa) —
Sources: ZECO Valve, St. Paul Foundry, Savvy Valves

3.3 C95800 Physical Properties

Property Value
Density 7.64 g/cm³ (0.276 lb/in³)
Melting Range 1043 – 1063°C (1910 – 1940°F)
Thermal Conductivity 36 W/mK (20.8 Btu·ft/ft²·hr·°F @ 68°F)
Coefficient of Thermal Expansion (0–250°C) 16.2 μm/m·K (9.0 × 10⁻⁶ in/in/°F)
Electrical Conductivity 7.1% IACS @ 68°F
Specific Heat 0.105 Btu/lb/°F @ 68°F
Sources: ZECO Valve, St. Paul Foundry

3.4 Key Material Characteristics

Superior Seawater Corrosion Resistance: C95800 offers superior saltwater corrosion resistance and is resistant to both cavitation and erosion. It naturally forms a tough, self-healing alumina (Al₂O₃) passive film on its surface.
Exceptional Wear Resistance: C95800 is recognized as having the best wear resistance of all bronzes.
Anti-Galling Properties: Exhibits excellent resistance to galling and seizing, critical for threaded components and seating surfaces.
Good Castability: Provides excellent casting qualities suitable for large and complex valve components.
Weldability: Suitable for welding and repair procedures.
Non-Sparking: Ideal for hazardous or explosive environments.
Corrosion Resistance in Various Media:
Media Resistance Rating
Acetate Solvents Excellent
Acetic Acid (20%/50%/Glacial) Excellent
Alcohols Excellent
Aluminum Sulfate Excellent
Seawater / Brine Excellent
Non-oxidizing Acids Good
Moist Ammonia Gas Not Recommended
Source: St. Paul Foundry

4. Technical Specifications

Parameter Specification Range
Nominal Size ½″ – 16″ (DN15 – DN400)
Pressure Class Class 150 / 300 / 600 / 900 / 1500 / 2500
PN10 / PN16 / PN25 / PN40 / PN64 / PN100 / PN420
End Connections Flanged (RF / RTJ / FF per ASME B16.5), NPT Threaded (ASME B1.20.1), Butt Weld, Socket Weld
Temperature Range -29°C to +300°C (depending on seat/seal materials)
Extended temperature range available with special trims
Flow Characteristic Linear / Throttling / On-Off
Flow Direction Normally “under the seat” (refer to body arrow marking)
Leakage Class ANSI/FCI 70-2 Class IV / Class V / Class VI (per trim selection)
Operation Type Handwheel (standard), Worm Gear, Electric Actuator, Pneumatic Actuator, Hydraulic Actuator
Sources: NTGD Valve, Savvy Valves, CTGV

5. Reference Pressure-Temperature Ratings

*The following table provides reference values for C95800 material in accordance with ASME B16.34 principles. Actual ratings must be verified with manufacturer’s pressure-temperature charts.*

Temperature Class 150 Class 300 Class 600
38°C (100°F) 290 psi (20 bar) 740 psi (51 bar) 1,480 psi (102 bar)
100°C (212°F) 260 psi (18 bar) 675 psi (46.5 bar) 1,350 psi (93 bar)
150°C (302°F) 230 psi (16 bar) 620 psi (42.8 bar) 1,240 psi (85.5 bar)
200°C (392°F) 200 psi (14 bar) 560 psi (38.6 bar) 1,120 psi (77.2 bar)
250°C (482°F) 170 psi (12 bar) 490 psi (33.8 bar) 980 psi (67.6 bar)
300°C (572°F) — 420 psi (29 bar) 840 psi (58 bar)
*Note: Ratings are indicative only. C95800 is suitable for continuous service up to 300°C. Always consult manufacturer’s certified pressure-temperature charts for specific ratings.*

6. Reference Hydrostatic Test Pressures

The following test pressures are provided as reference values for C95800 angle globe valves per API 598 standards.

Pressure Class Shell Test (Water) Seat Test (Water)
Class 150 3.0 MPa (435 psi) 2.2 MPa (319 psi)
Class 300 7.5 MPa (1,088 psi) 5.5 MPa (798 psi)
Class 600 16.5 MPa (2,393 psi) 12.1 MPa (1,755 psi)
Class 900 22.5 MPa (3,263 psi) 16.5 MPa (2,393 psi)
Reference source: Han Yue Valve

7. Material of Construction

No. Component Standard Material Alternative Material
1 Body ASTM B148 C95800 BS EN 1982 CC333G
2 Bonnet ASTM B148 C95800 ASTM B148 C95800
3 Disc / Plug ASTM B148 C95800 (hardened) ASTM B150 C63000 (aluminum bronze)
4 Seat Ring ASTM B148 C95800 (integral/hardened) Replaceable stellite-faced seat
5 Stem ASTM B150 C63200 (Nickel Aluminum Bronze) Monel K500 / AISI 316 SS / 17-4PH
6 Stem Packing PTFE / Graphite VITON (FKM) / Flexible Graphite
7 Bonnet Gasket PTFE Spiral Wound (Graphite/SS)
8 Bonnet Bolting ASTM A193 B8 (Stainless Steel) Silicon Bronze / Monel
9 Handwheel ASTM A48 Gray Iron / Ductile Iron Aluminum Bronze
10 Nameplate Stainless Steel —
Sources: Savvy Valves, LW Marine, Han Yue Valve

8. Applicable Standards

The C95800 Angle Globe Valve is designed, manufactured, and tested in accordance with the following industrial standards:

Category Standard Description
Design & Manufacturing API 600 Steel Gate Valves (applicable principles)
BS 1873 Steel Globe & Check Valves
ASME B16.34 Valves — Flanged, Threaded, and Welding End
EN 13709 / DIN 3356 Industrial Valves — Steel Globe & Check Valves
Face-to-Face Dimensions ASME B16.10 Face-to-Face Dimensions for Flanged Valves
EN 558-1 / DIN 3202 F32 Face-to-Face Dimensions of Flanged Valves
IEC 60534-3-1 Centre-to-Face for Angle Pattern Control Valves
Flange Dimensions ASME B16.5 Pipe Flanges and Flanged Fittings (NPS ½ – 24)
EN 1092-2 Copper Alloy Flanges
Threaded Ends ASME B1.20.1 NPT Threads
Inspection & Testing API 598 Valve Inspection and Test
ISO 5208 / EN 12266-1 Industrial Valves — Testing
Marking MSS SP-25 Standard Marking System for Valves, Fittings, Flanges
Sources: Savvy Valves, NTGD Valve, CTGV

9. Reference Dimensions (ANSI/ASME B16.10 — Class 150 Flanged Angle Globe Valve)

*Note: The following dimensions are reference values for flanged angle globe valves. Standard BS 1873 angle pattern globe valves are dimensioned using center-to-face dimensions (CTF) rather than conventional face-to-face (FTF) because the inlet and outlet centerlines are offset. Contact manufacturer for certified dimensional drawings for specific size and pressure class.*

10. Product Features

90° Angle Pattern Design: Integrates flow direction change within the valve body, reducing the need for separate pipe elbows and minimizing installation complexity and leak paths
Reduced Pressure Drop: The angled flow path provides smoother flow transition compared to straight globe valves with external elbows, resulting in lower system pressure loss
Superior Seawater Corrosion Resistance: C95800 nickel aluminum bronze delivers exceptional resistance in seawater, brine, and chloride-containing environments, aided by a self-healing Al₂O₃ passive film
High Strength & Wear Resistance: C95800 offers outstanding strength (tensile strength ≥ 586 MPa) and is recognized as having the best wear resistance of all bronzes
Cavitation & Erosion Resistance: The material resists cavitation damage and erosion-corrosion, ensuring long service life in high-velocity and high-pressure drop applications
Excellent Anti-Galling Properties: C95800 exhibits superior resistance to galling and seizing, making it ideal for threaded connections and metal-to-metal seating surfaces
Multiple End Connection Options: Available with flanged ends (ASME B16.5 RF/RTJ/FF), NPT threaded ends, butt weld ends, or socket weld ends to suit various piping systems
Rising Stem / OS&Y Design: Outside screw and yoke configuration provides visual indication of valve position (stem rises when open, lowers when closed) and protects stem threads from corrosive media
Bidirectional Shut-Off Capability: Provides reliable isolation in both flow directions when specified
Fire-Safe Design Option: Available with fire-safe trim (API 607/API 6FA certified) for critical safety applications
11. Applications

The C95800 Nickel Aluminum Bronze Angle Globe Valve is widely used in industries requiring high corrosion resistance, mechanical strength, and reliable flow control in demanding environments.

Marine & Shipbuilding

Ship seawater cooling systems
Ballast and bilge systems
Fire main systems and firewater lines
Sanitary and deck wash systems
Engine room auxiliary systems
Seachest intake and discharge lines
Offshore Oil & Gas

Offshore platforms and FPSO topside piping
Seawater injection systems
Produced water treatment
Chemical injection systems
Hydraulic and utility systems
Desalination Plants

Seawater intake pipelines
Reverse osmosis (RO) pretreatment
Brine discharge lines
Chemical & Petrochemical

Non-oxidizing acid service
Industrial process fluids
Sour water and mine water handling
Power Generation

Power plant seawater cooling systems
Condenser circulating water
Auxiliary cooling systems
Industrial & General

Food and beverage processing
Pulp and paper mills
Mining and mineral processing
Wastewater treatment plants
12. Design Variants

The C95800 angle globe valve can be supplied in the following configurations to meet specific application requirements:

Variant Description
Standard Angle Globe Valve Basic shut-off and throttling service (rising stem, handwheel operation)
Angle SDNR Valve Screw-Down Non-Return — combines isolation and non-return (check) functions in a single body
Angle Bellows Sealed Globe Valve Bellows seal provides zero leakage to atmosphere for hazardous or toxic media
Angle Control Valve Equipped with pneumatic or electric positioner for modulating control applications
High-Pressure Angle Globe Valve Rated for Class 900 to 2500 for severe service conditions
Threaded End Angle Globe Valve NPT or BSP threaded connections for smaller bore sizes
13. Ordering Information

To ensure correct selection and quotation, please provide the following information when ordering:

Nominal Size (NPS / DN): _____
Pressure Class (Class 150/300/600/900/1500/2500) OR PN Rating (PN10/16/25/40/64/100/420): _____
End Connection Type: Flanged (RF/RTJ/FF) / NPT Threaded / Butt Weld / Socket Weld
Flange Standard (if applicable): ASME B16.5 / EN 1092-2 / Other: _____
Face-to-Face / Center-to-Face Standard: ASME B16.10 / BS 1873 / IEC 60534-3-1 / EN 558
Design Standard: API 600 / BS 1873 / ASME B16.34
Service Medium: _____
Operating Temperature: Min _____ °C / Max _____ °C
Operating Pressure: Min _____ bar / Max _____ bar
Flow Characteristic: On-Off / Linear / Equal Percentage
Leakage Class Required: ANSI/FCI 70-2 Class IV / V / VI
Stem Material: ASTM B150 C63200 / Monel K500 / AISI 316
Packing / Sealing Material: PTFE / Graphite / VITON
Operation Type: Handwheel / Gearbox / Electric Actuator / Pneumatic Actuator
Fire-Safe Construction Required: Yes / No
Special Requirements: Bellows seal / Cryogenic service / NACE compliance / Other: _____
Disclaimer: This technical data sheet is based on general industry standards, published material data, and publicly available manufacturer information. All data are for reference purposes only. Final specifications are subject to actual product drawings, manufacturer-specific certification, and mutually agreed technical documents. Users should verify all specifications with the manufacturer prior to procurement and installation.
