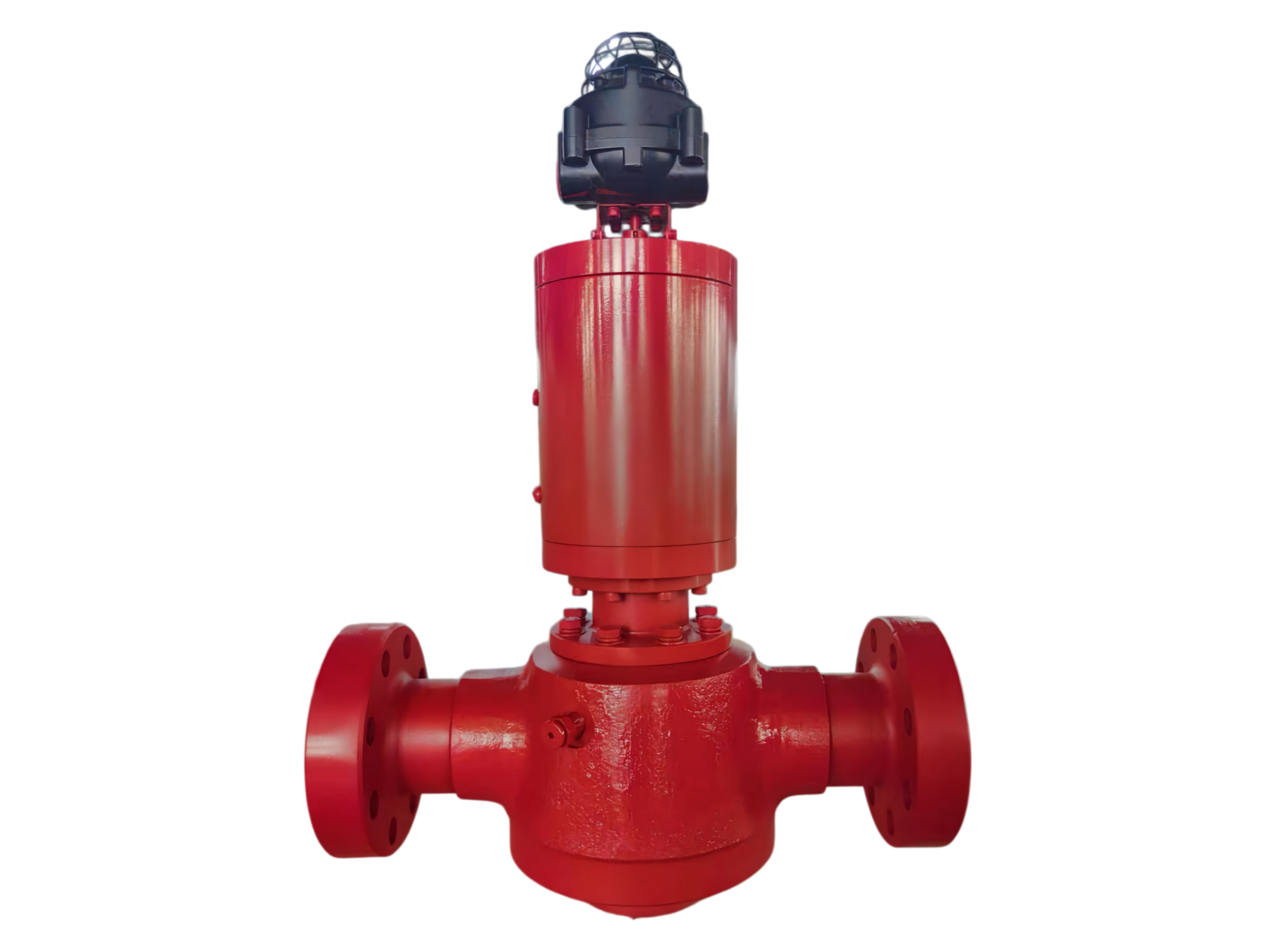

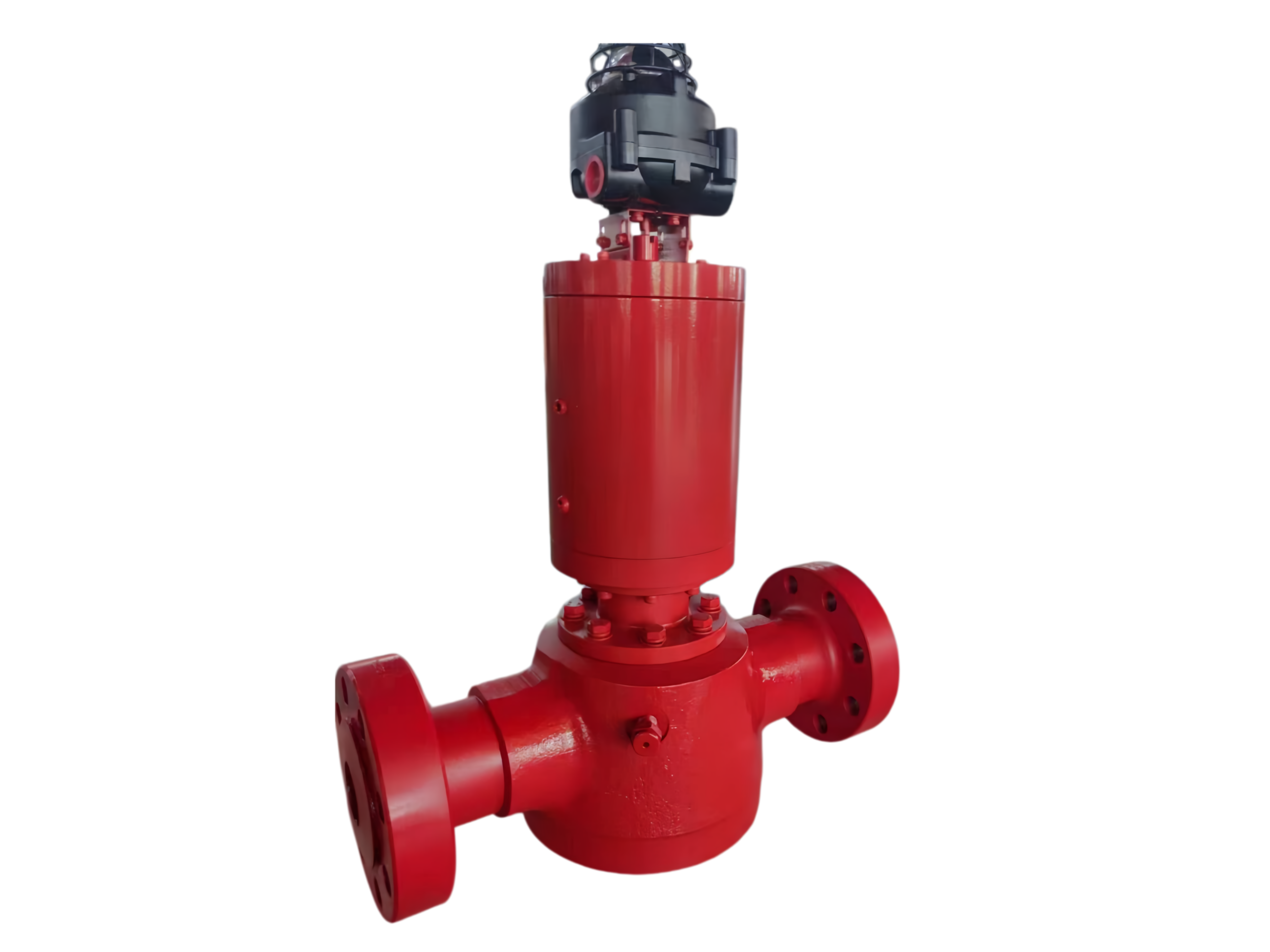

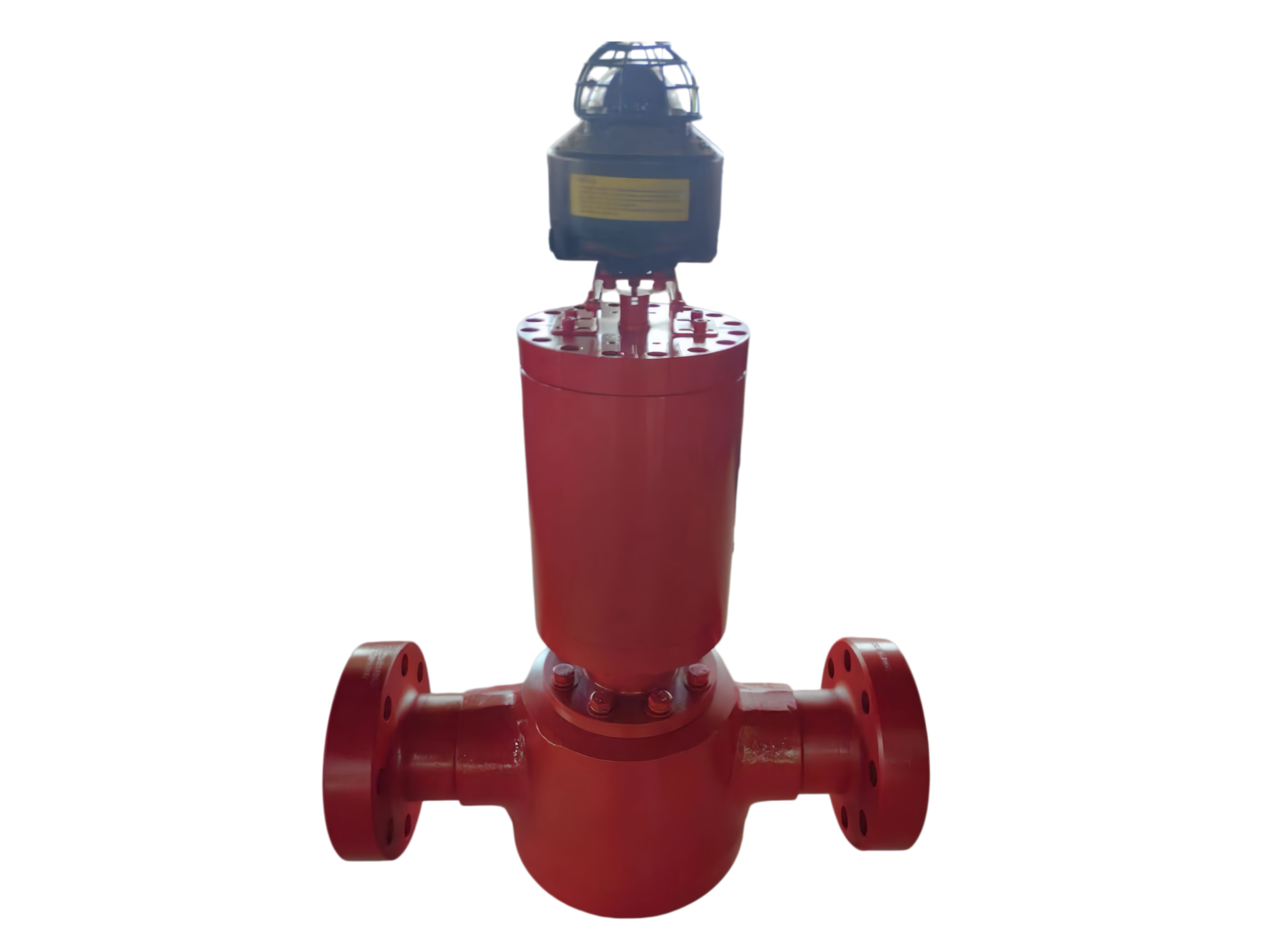

API 6A Halliburton-Style Plug Valves Alternative

Description

Technical Data Sheet — API 6A Halliburton-Style Plug Valve

Valve Type: Low-Torque, Split-Insert, Cylindrical Plug Valve (Bottom-Entry)
Model Designation: PV-LT-6A (Halliburton Lo-Torc® Style Replacement)
Product Name: API 6A Low-Torque Plug Valve — 100% Interchangeable with Halliburton Plug Valves
Nominal Size: 2″ (Representative Configuration; also available 1″ and 3″)
Pressure Rating: 10,000 psi (69.0 MPa) [Cold Working Pressure]; Standard Range 6,000 – 15,000 psi (42 – 105 MPa), 20,000 psi (140 MPa) Test
End Connection: Fig 1502 Hammer Union, Male x Female (Threaded LP/TBG and Flanged available)
Operation: Wrench (Standard); Pneumatic, Hydraulic, or Gear Operator optional

1. Valve Configuration & Design Standards

Parameter Specification
Valve Design Cylindrical (Non-Tapered) Plug, Split-Insert Design, Pressure-Balanced
Body Style Bottom-Entry, One-Piece Forged Body — top-entry configuration also available
Design & Manufacturing Standard API Specification 6A / ISO 10423, 21st Edition
Pressure Rating 6,000 psi / 10,000 psi / 15,000 psi (105 MPa); Up to 20,000 psi (140 MPa) hydrostatic test
Product Specification Level (PSL) PSL 1–3 (PSL 2 Typical)
Performance Requirement (PR) PR 1–PR 2
Material Class AA – FF (DD / EE Typical for Sour Gas Service)
Temperature Class K, L, P, R, S, T, U, V (KU Standard: −29°C to +121°C / −20°F to +250°F)
NACE Compliance NACE MR0175 / ISO 15156 (Sour Service), as applicable
Fire-Safe Qualification API 6FA / API 607 (Upon Request)
Connection Types Hammer Union (Fig 1502 / 1002 / 2002), Threaded (LP / TBG), Flanged (API 6A)
Sizes Available 1″ / 2″ / 3″ (2″ Representative Configuration Shown)
Service Well Cementing, Fracturing, Acidizing, Well Service Flowlines, Manifold Trailers, Coil Tubing
2. Materials of Construction — Standard Trim, DD/EE & Sour Service

Part Name Qty. Material — DD/EE Sour Gas Service Material — Standard Service / Corrosive Resistant
Body 1 AISI 4130 / 4140 Alloy Steel, Forged, Heat Treated AISI 4130 / 4140 / F22 Alloy Steel
Bonnet / Cover 1 AISI 4130 / 4140 Alloy Steel, Forged AISI 4130 / 4140 Alloy Steel
Plug (Cylindrical Core) 1 316/316L Stainless Steel (Standard); Monel / 17‑4PH for sour / H₂S service 316/316L Stainless Steel
Inserts / Segments (Split Pair) 2 Aluminum Bronze (DD/EE); Tapered OD, Precision-Ground ID Ductile Iron / Aluminum Bronze
O-Ring Seals (Inserts) 2 Viton (FKM) / PTFE / HNBR Nitrile (NBR) / Viton (FKM) / PTFE
Stem Packing Set 1 Set PTFE-Impregnated Synthetic Fiber / PTFE + Inconel Spring PTFE + Inconel Spring Bonded
Adjusting Nut 1 Alloy Steel, with O-Ring Seal Alloy Steel
End Connections 2 Alloy Steel Integral (Hammer Union / Threaded / Flanged) Alloy Steel
Grease Fitting 1 Steel, Giant Button-Head Steel
Handle / Wrench 1 Steel with Operating-Bar Sockets Steel
Name Plate 1 Stainless Steel to API 6A / MSS SP-25 Stainless Steel
Interchangeability Principle: All trim components and repair kits are dimensionally identical and physically interchangeable with Halliburton Lo-Torc® split-insert plug valves, ensuring no modification is required on existing manifolds or pipelines.

3. Dimensions & Weights — 2″ Representative Configuration, Fig 1502 Union, 10,000 & 15,000 psi

Size Working Pressure (psi/MPa) Length L (mm) Diameter A (mm) Height H (mm) Approx. Weight (kg) Union Connection
2″ 10,000 / 70 353 88 225 35 Fig 1002 (F × M)
2″ 15,000 / 105 353 88 225 35 Fig 1502 (F × M)
2″ 15,000 / 105 374.5 88 225 40 Fig 1502 × 3″
2″ 20,000 / 140 386 88 225 42 Fig 2002 (F × M)
3″ 10,000 / 70 432 103 254 55 Fig 1002 (F × M)
3″ 15,000 / 105 432 103 254 55 Fig 1502 (F × M)
Dimensions conform to API 6A standard plug valve envelope geometry.

4. Performance Data — Torque and Pressure

Size Max. CWP (psi) Operating Torque (N·m) Operating Torque (lb·ft)
1″ 15,000 40 30
2″ 15,000 95 70
3″ 15,000 150 111
*Low torque is achieved through the pressure-balanced cylindrical plug + split-insert design, even at 15,000 psi.*

5. Actuator Mounting (Upon Request)

Item Specification
Mounting Flange Standard ISO 5211 Standard Flange Integrated on Valve Top
Stem Drive Preparation Stem Top Machined with Keyway or Square per Actuator Coupling Requirements
Actuator Types Manual (Wrench/Bar), Pneumatic Actuator (Double-Acting or Spring-Return), Hydraulic Actuator, Gear Operator (Standard for 3″ and Larger)
Manual Override Standard Wrench with Operating-Bar Sockets
Accessories Limit Switches, Solenoid Valves, Positioners, Gearboxes Available as a Package
6. Testing & Inspection

Test Item Test Medium Test Pressure Standard
Shell Hydrostatic Test Water 1.5 × CWP (e.g., 15,000 psi for 10,000 psi CWP; 22,500 psi for 15,000 psi CWP) API 6A
Seat Hydrostatic Test Water 1.1 × CWP (e.g., 11,000 psi for 10,000 psi CWP; 16,500 psi for 15,000 psi CWP) API 6A
Pneumatic Seat Test (Optional) Air / Nitrogen Per PSL Requirements API 6A
Visual & Dimensional — — MSS SP-55, API 6A
Hold Duration: Minimum 15 minutes per test; PSL 3G and PSL 4 include enhanced requirements.

Documentation:

Material traceability and test reports per EN 10204 3.1 or 3.2
API 6A Monogram certification available
Full traceability on all forging, machining, heat treatment and pressure test processes
7. Design Features & Benefits (Halliburton Lo-Torc® Replacement)

Feature Description Benefit
Cylindrical Plug Design Cylindrical (non-tapered) plug eliminates wedging action Prevents jamming under pressure; significantly reduces operating torque
Pressure-Balanced Plug Identical stem seals at both ends Eliminates need for thrust bearings; low torque even at 15,000 psi
Split Inserts Design Inserts are parted into identical halves, tapered OD to match body cavity; ID precision ground to plug diameter Firm uniform clamping; easy adjustment; no lapping required
Floating Plug & Inserts Assembly Assembly “floats” downstream under pressure Compensates for body deflection; seal improves with pressure
Reduced Bearing Area Raised boss on inserts is only contact area Minimizes frictional forces; reduces operating torque
In-Line Maintenance All parts replaceable with valve body left in line Minimal downtime; no special tools required
Dual-Function Lubrication System Grease fitting with lubrication chambers above/below plug Lubricates and enhances sealing simultaneously
Metal-to-Metal + Elastomer Sealing Precision cylindrical fit + O-ring seals Reliable leak-proof operation under extreme conditions
Clear Open/Close Indication Apparent open/close identification and position limiting mechanism Improved operational safety; quick visual status verification
Multiple Actuation Options Handle, pneumatic, hydraulic or gear operators available Flexible integration into manual or automated systems
8. Halliburton-Style Replacements & Spare Parts Compatibility

Replacement Part Compatible Sizes Service Coverage Remarks
Valve Assembly (Complete) 1″, 2″, 3″ Standard / Sour / Low Temperature Fully interchangeable with Halliburton Split Insert Type Valves
Repair Kit 1″×2″, 2″×2″, 3″×3″ Per size and pressure rating Contains Plug, Inserts, O-Rings, Packing, Grease Fitting
Plug (Cylindrical Core) 1″, 2″, 3″ Standard / Sour 316 SS Standard; Monel / 17‑4PH for Sour Service
Inserts / Segments 1″, 2″, 3″ Standard / Sour Ductile Iron (Standard) / Aluminum Bronze (Sour)
Seal Kit 1″, 2″, 3″ All services O-Rings (Nitrile / Viton / PTFE), Packing Set, Gasket
All spare parts are manufactured to identical dimensional specifications and tolerances, enabling 100% physical interchangeability with Halliburton brand plug valves without any modification to existing assemblies.

9. Service Conditions — Suggested Material & Seal Selections

Service Body Plug Inserts O‑Ring / Packing
Standard Service AISI 4130 316 SS Ductile Iron Nitrile (NBR)
Sour Gas (H₂S) – Moderate AISI 4130 (NACE) 316 SS Aluminum Bronze Viton (FKM)
Sour Gas (H₂S) – Severe AISI 4130 / F22 Monel / 17‑4PH Aluminum Bronze PTFE + Inconel Spring
Low Temperature (−46°C) AISI 4130 (Impact Tested) 316 SS Ductile Iron Low‑Temp Nitrile / Viton
10. Ordering Information

When ordering, please specify:

Replacement Type: Halliburton Lo-Torc® Style Plug Valve (100% Interchangeable)
Nominal Size: 1″ / 2″ / 3″
Cold Working Pressure: 6,000 / 10,000 / 15,000 psi
End Connection: Fig 1502 Hammer Union (specify F × M or M × F), Threaded LP/TBG, Flanged
Material Class: DD / EE / FF (per API 6A and NACE MR0175 service requirements)
Product Specification Level (PSL): PSL 1, 2, 3
Performance Requirement (PR): PR 1, PR 2
Temperature Class: KU (Standard), PL, PU, or other
NACE MR0175 Compliance: Yes / No
Operation: Manual (Wrench/Handle), Pneumatic, Hydraulic, Gear Operator
Documentation Level: EN 10204 3.1 / 3.2 Certificates, PMI, NDE Reports
11. Replacement Summary — Comparison with Halliburton

Feature Halliburton Lo-Torc® Plug Valve This Alternative Plug Valve
Design Split-Insert, Cylindrical Plug, Bottom-Entry Split-Insert, Cylindrical Plug, Bottom-Entry
Interchangeability Original Equipment 100% Interchangeable — all dimensions identical
Pressure Ratings 6,000 / 10,000 / 15,000 / 20,000 psi 6,000 / 10,000 / 15,000 / 20,000 psi
Sizes 1″, 2″, 3″ 1″, 2″, 3″
Material Classes DD, EE, FF (NACE MR0175) DD, EE, FF (NACE MR0175)
Temperature KU (−29°C to +121°C) Standard KU (−29°C to +121°C) Standard
Repair Kit Compatibility Original Halliburton Kit Full Replacement Kit — compatible with Halliburton brand
Field Maintenance In-Line, No Special Tools In-Line, No Special Tools
Manufacturing Standard API 6A, NACE MR0175 API 6A, NACE MR0175
Certifications API 6A Monogram API 6A Monogram Certified Factory
Full Traceability Standard Forging, Machining, Heat Treatment, Pressure Test — All Fully Traceable
Note: This API 6A Halliburton-Style Low-Torque Plug Valve is 100% dimensionally and functionally interchangeable with genuine Halliburton plug valves. All components are manufactured by an API 6A-certified factory under strict quality controls. Repair kits for 1″, 2″, and 3″ sizes with pressures up to 20,000 psi are available and fully replaceable without modification to existing manifolds or pipelines.
Disclaimer: “Halliburton” and “Lo-Torc” are registered trademarks of Halliburton Energy Services, Inc. This product is designed to be dimensionally and functionally compatible with Halliburton plug valves and is not manufactured by or affiliated with Halliburton. All trademarks are the property of their respective owners. Customers must verify their specific fit, form, and function requirements before ordering.
